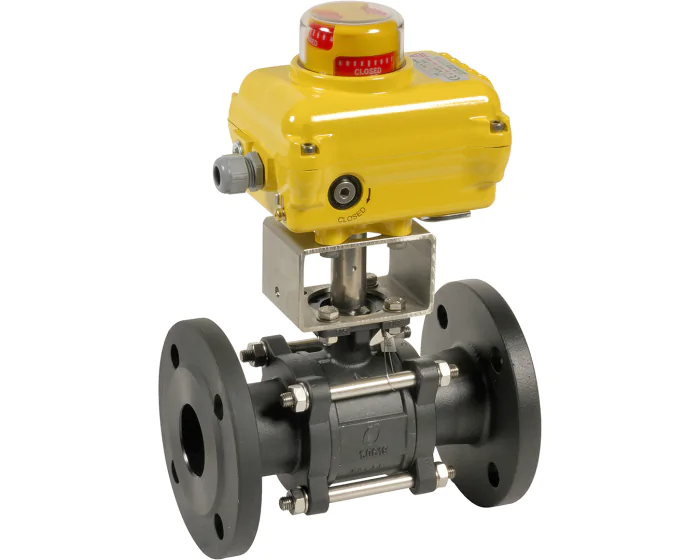

The 765 XS 3-piece body ball valve has a 1.0619 carbon steel body, stainless steel ball and PTFE/stainless steel seats. Electric actuator SA/NA. Steam service: PS: 15 bar, TS: 200°C. Flanged PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 130.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Power (W) | 6 |
| Connections | Flanged PN40 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Stainless steel |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -25 |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' 230 V AC SA 05 | 271322023010 | S1004434 |
€599.36
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' 24 V AC/DC SA 05 | 271322023011 | S1004435 |
€599.36
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' 230 V AC SA 05 | 271323023010 | S1004436 |
€627.99
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' 24 V AC/DC SA 05 | 271323023011 | S1004437 |
€627.99
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' 230 V AC SA 05 | 271324023010 | S1004438 |
€641.69
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 230 V AC SA 05 | 271325023010 | S1004439 |
€691.39
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 230 V AC SA 05 | 271326023010 | S1004440 |
€808.66
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' 230 V AC SA 05 | 271327023010 | S1004441 |
€893.19
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' 24 V AC/DC SA 05 | 271327023011 | S1004442 |
€893.19
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' 230 V AC NA 15 | 271330023130 | S1004445 |
€2,323.33
(excl. btw)
|
add to cart |
